GO-BUSINESS BAUDOUIN 500 kVA ДИЗЕЛЬ-ГЕНЕРАТОРНАЯ УСТАНОВКА
  • Мы подходим к своей работе широко, с разными решениями и новыми идеями. Мы хотели бы знать, что мы можем сделать для вас, как насчет того, чтобы связаться с нами и встретиться?

    İLETİŞİM

    GO-BUSINESS BAUDOUIN 500 kVA ДИЗЕЛЬ-ГЕНЕРАТОРНАЯ УСТАНОВКА

    500 kVA BAUDOUIN ДИЗЕЛЬ-ГЕНЕРАТОРНАЯ УСТАНОВКА

    Belgeler
    Belgeler
    Belgeler



    GO-BUSINESS Baudouin engine group provides a long-term and Professional solution with High Performance and 5-YEAR WARRANTY period in fixed facilities, spare or Continuous Power usage areas.



    VOLTAGE

    STANDY-BY POWER (ESP) PRIME POWER (PRP) STANDY-BY AMP
    kW kVA kW kVA
    400/230 400,00 500,00 364,00 455,00 656,85



    Standby Power (ESP) is used to meet the need for variable electrical loads in case of interruption of a reliable network supply.
    Prime Power (PRP) is defined as continuous working power under variable load, 10% overload can be performed every 12 hours.

    GENERAL SPECIFICATIONS :

    MODEL NAME : GBP-500
    FREQUENCY (HZ) : 50
    THE TYPE OF FUEL USED : DIESEL
    ENGINE MAKE AND MODEL : BAUDOUIN 6M21G500/5^
    ALTERNATOR BRAND AND MODEL : BUSINESS 354C
    THE CONTROL PANEL MODEL : DATAKOM D500
    CABIN : GB-500



    CABIN SPECIFICATIONS:

    LENGHT : 3450 cm
    WIDTH : 1650 cm
    HEIGHT : 2500 cm
    DRY WEIGHT (KG) : 2500 kg
    TANK CAPACITY : 1100 L

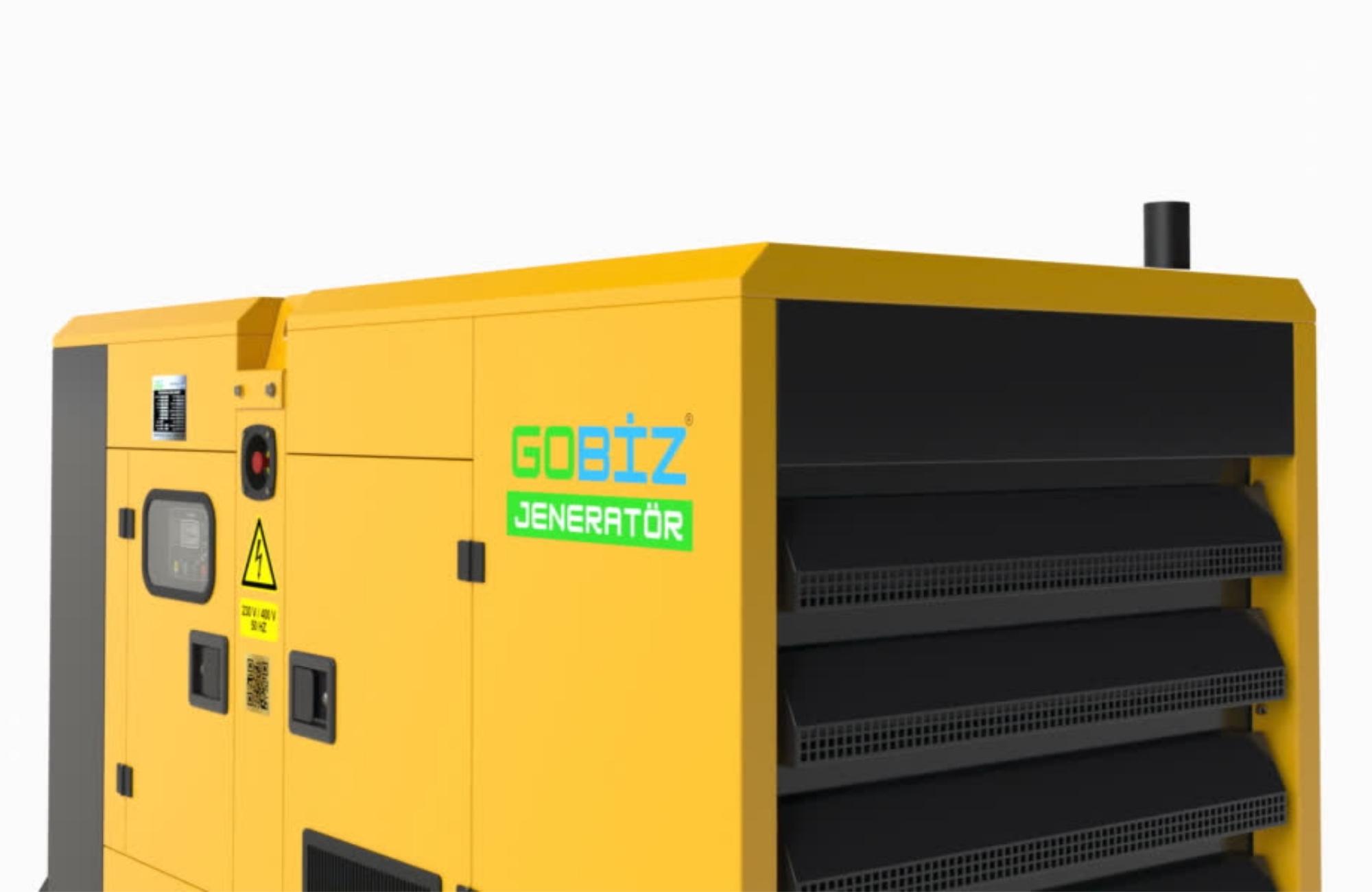

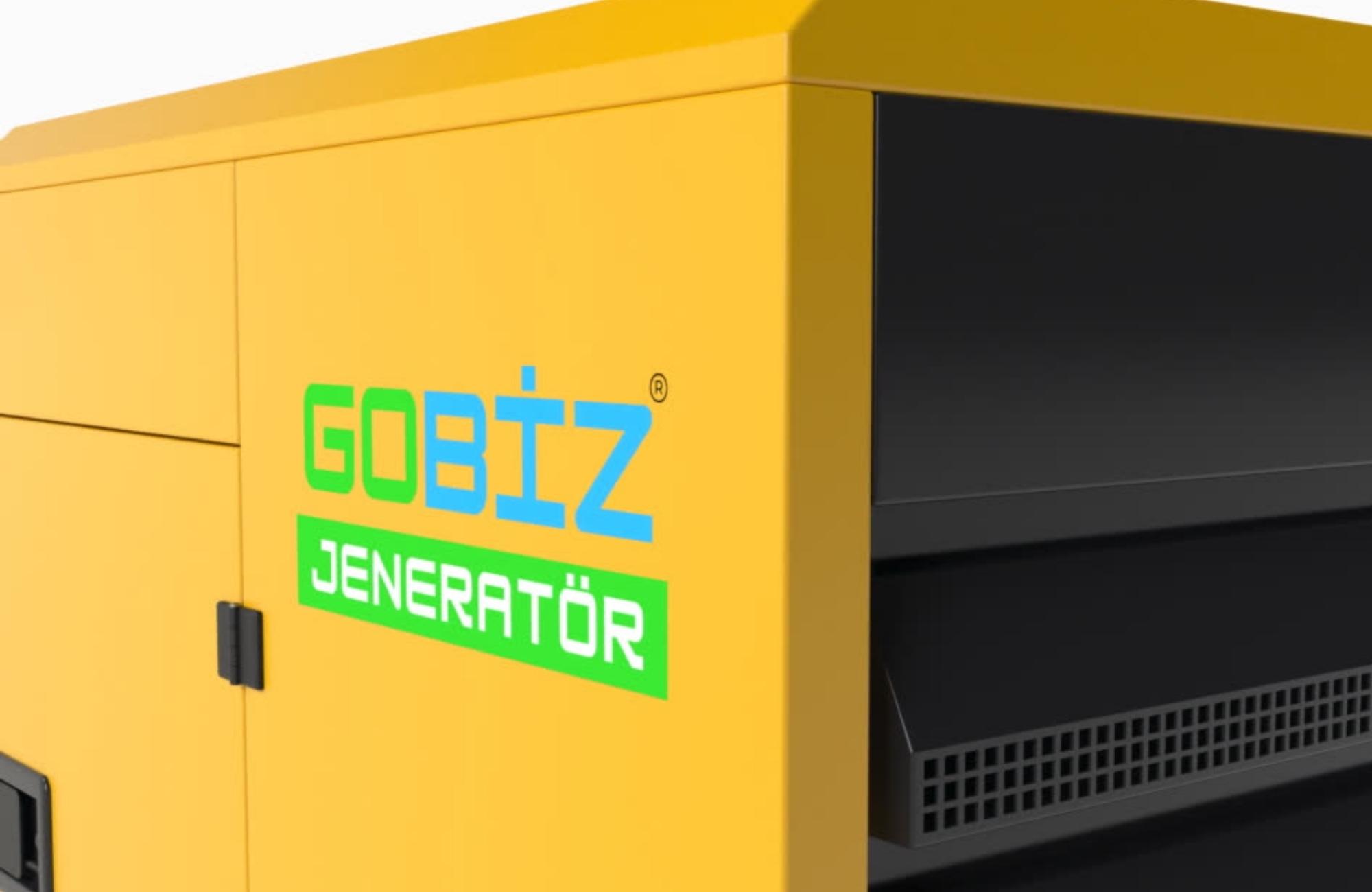

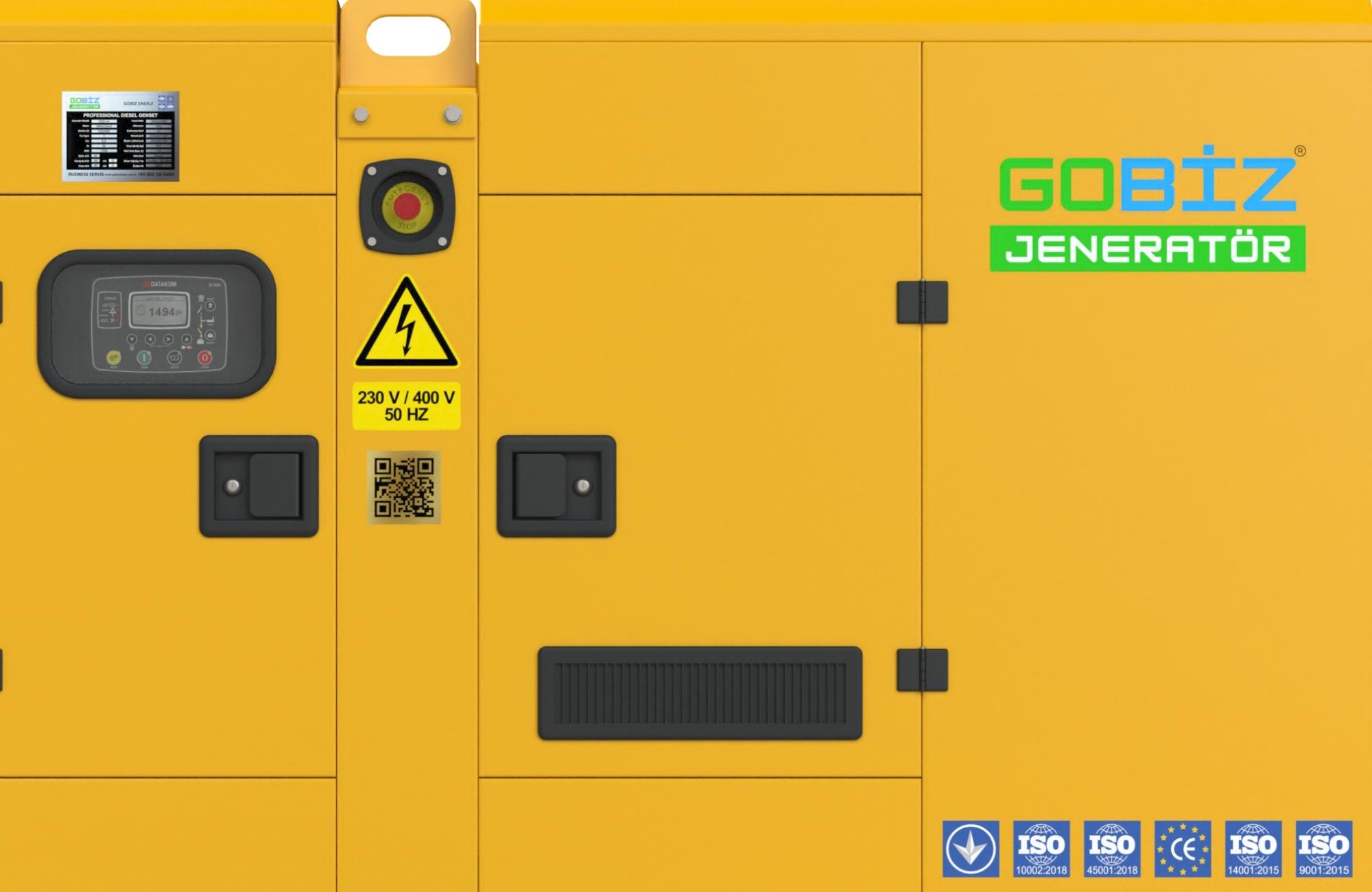

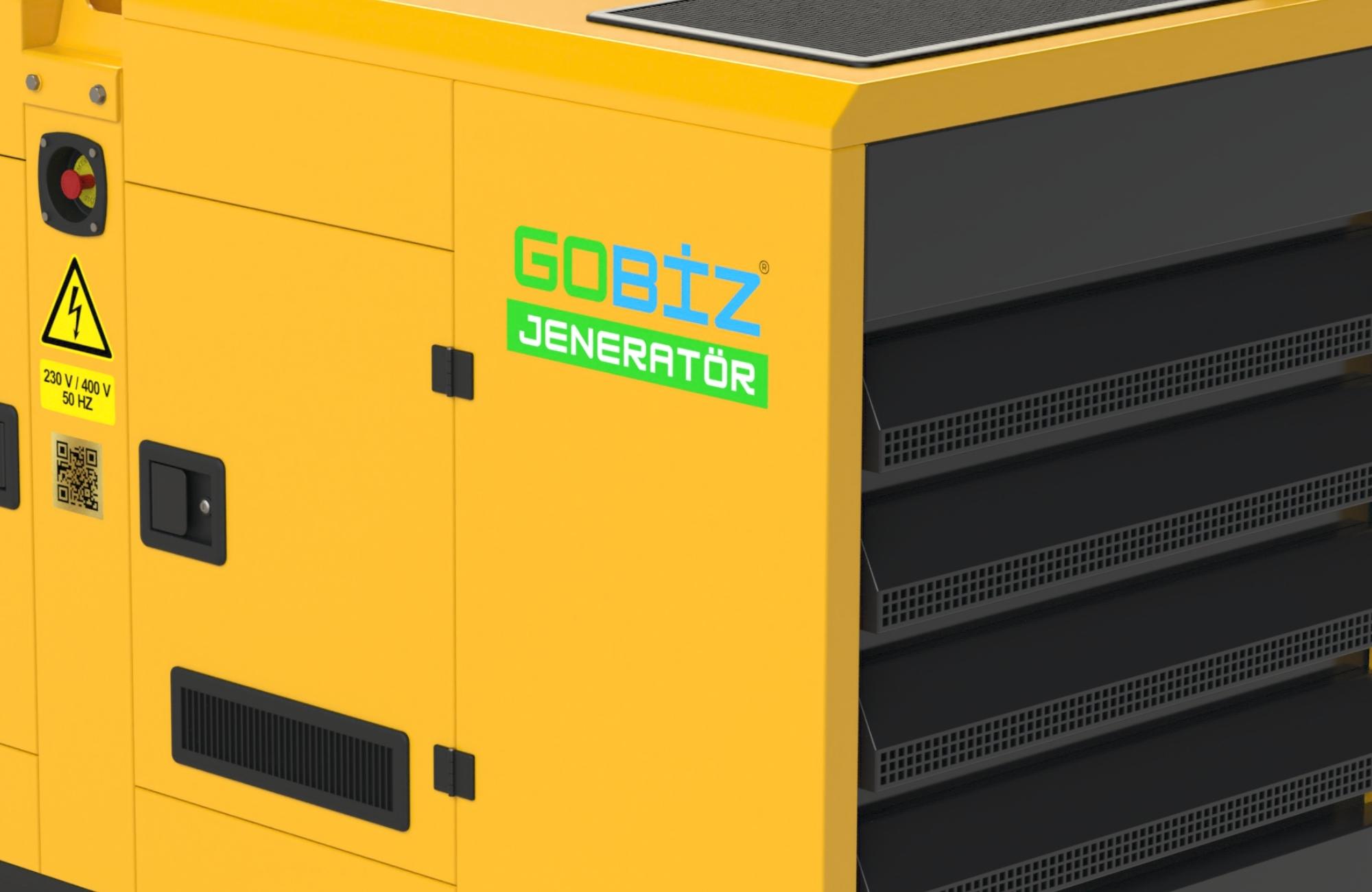

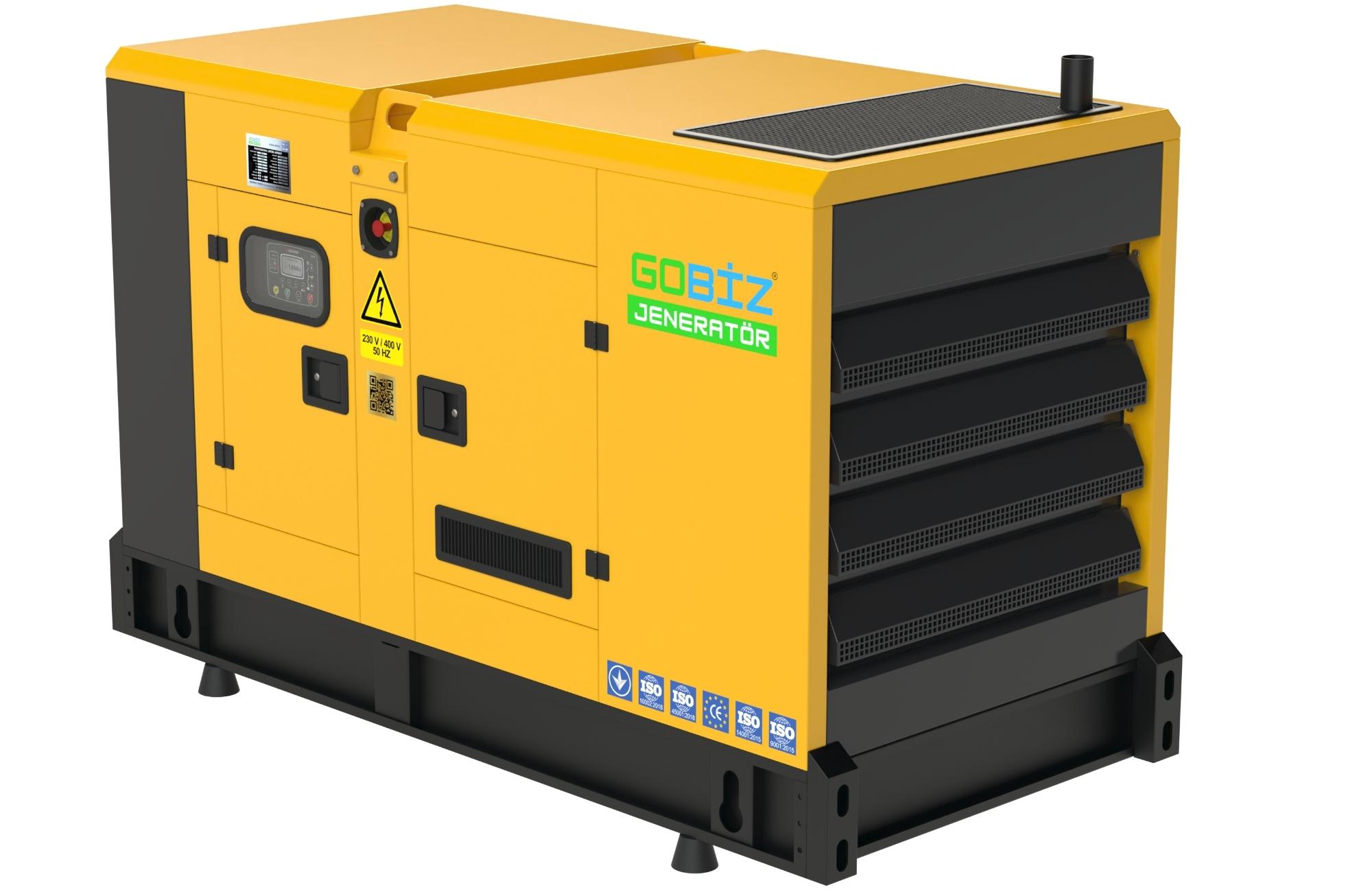

    Ultra Sound Insulated and Protective Cabins Ultra sound insulated, protection cabins developed for GO-BUSINESS generator sets in accordance with harsh weather and environmental conditions; They are designed to provide optimum sound level and protection.
    GO-BUSINESS cabins, in a modular structure that can be dismantled piece by piece, allow easy service and maintenance to the group and change parts at the workplace.
    At the same time, cabins have been designed by paying attention to the cooling performance and power output value of the generator group according to the ambient temperature, with a structure that will not cause any level reduction.

    GO-BUSINESS reserves the right to make changes in models, technical specifications, colors, equipment and accessories without prior notice.





    Teknik Döküman


    Форма ценового предложения

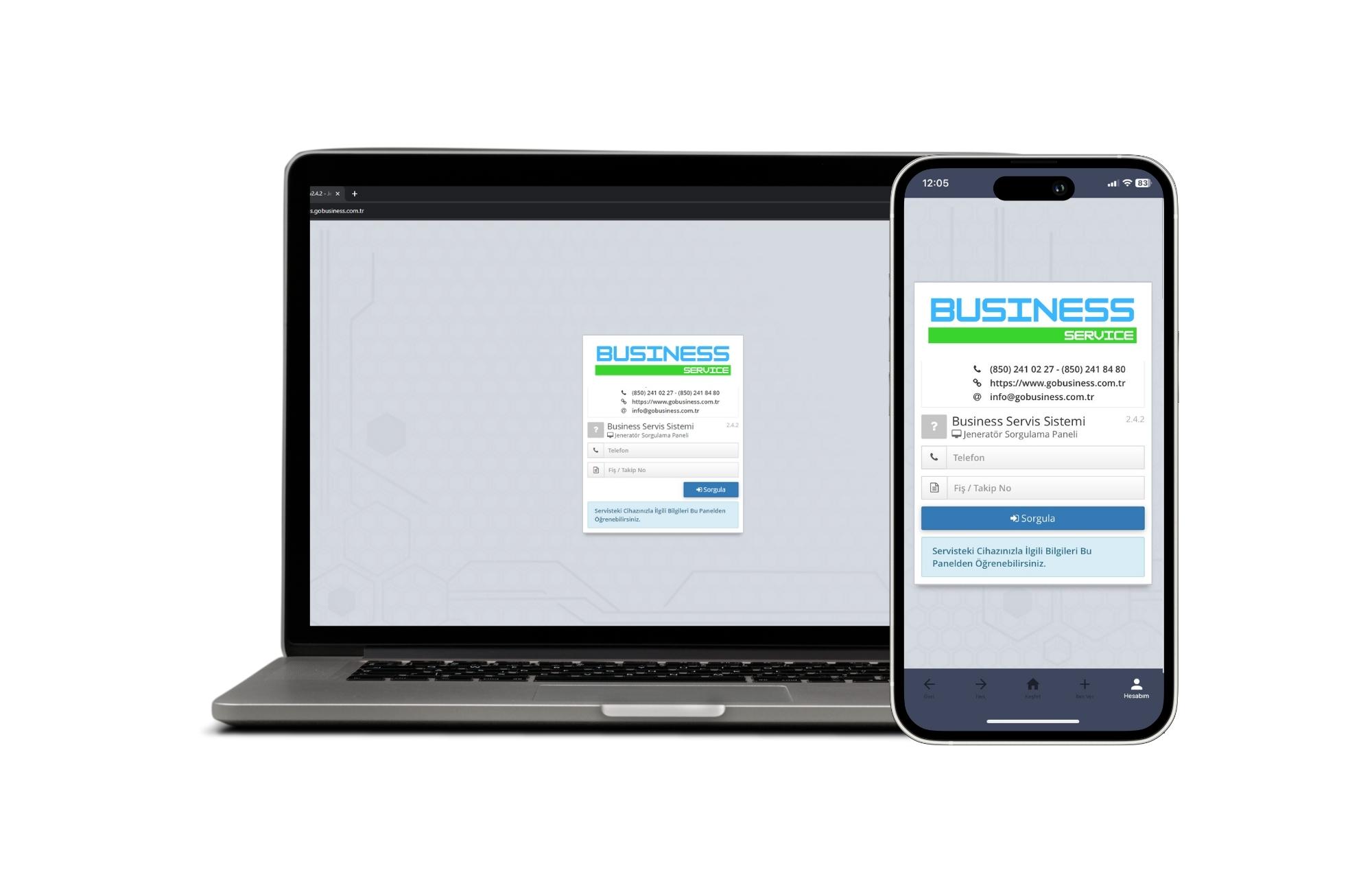

    Remote Monitoring
